AFC3326WS Datasheet, Mosfet, Alfa-MOS

AFC3326WS Features

  • Mosfet N-Channel 30V/12A,RDS(ON)=36mΩ@VGS=10V 30V/10A,RDS(ON)=46mΩ@VGS=4.5V P-Channel -30V/-8A,RDS(ON)=60mΩ@VGS=10V -30V/-6A,RDS(ON)=80mΩ@VGS=4.5V Application DC/DC Conversion Load Switch DC

PDF File Details

Part number:

AFC3326WS

Manufacturer:

Alfa-MOS

File Size:

897.21kb

Download:

📄 Datasheet

Description:

N&p-channel mosfet. AFC3326WS, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These d

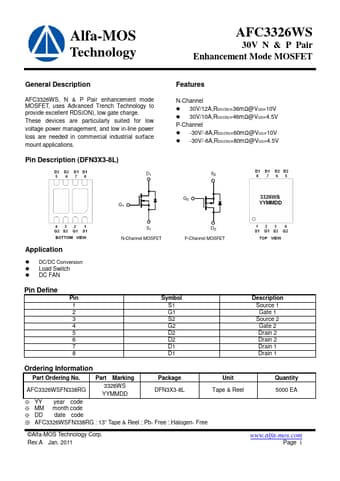

Datasheet Preview: AFC3326WS 📥 Download PDF (897.21kb)
Page 2 of AFC3326WS Page 3 of AFC3326WS

AFC3326WS Application

  • Applications Pin Description (DFN3X3-8L) Features N-Channel 30V/12A,RDS(ON)=36mΩ@VGS=10V 30V/10A,RDS(ON)=46mΩ@VGS=4.5V P-Channel -30V/-8A,RDS(ON)=
