AFC1016E Datasheet, Mosfet, Alfa-MOS

AFC1016E Features

  • Mosfet N-Channel
  • 20V/0.6A,RDS(ON)= 360mΩ@VGS=4.5V
  • 20V/0.5A,RDS(ON)= 420mΩ@VGS=2.5V
  • 20V/0.4A,RDS(ON)= 560mΩ@VGS=1.8V P-Channel
  • -20V/-0.4A, RDS(ON)= 620 m

PDF File Details

Part number:

AFC1016E

Manufacturer:

Alfa-MOS

File Size:

691.74kb

Download:

📄 Datasheet

Description:

N&p-channel mosfet. AFC1016E, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These de

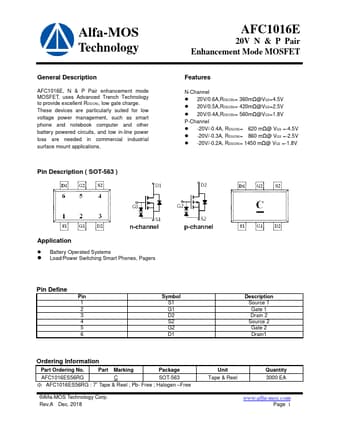

Datasheet Preview: AFC1016E 📥 Download PDF (691.74kb)
Page 2 of AFC1016E Page 3 of AFC1016E

AFC1016E Application

  • Applications Pin Description ( SOT-563 ) AFC1016E 20V N & P Pair Enhancement Mode MOSFET Features N-Channel
  • 20V/0.6A,RDS(ON)= 360mΩ@VGS=
