AFC1016, AFC1016-Alfa Datasheet - Alfa-MOS

AFC1016 - N&P-Channel MOSFET

AFC1016, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, such as smart phone and notebook computer and other battery powered circuits, and low in-line power loss.

AFC1016 Features

* N-Channel 20V/0.6A,RDS(ON)= 360mΩ@VGS=4.5V 20V/0.5A,RDS(ON)= 420mΩ@VGS=2.5V 20V/0.4A,RDS(ON)= 560mΩ@VGS=1.8V P-Channel -20V/-0.4A, RDS(ON)= 620 mΩ@ VGS =-4.5V -20V/-0.3A, RDS(ON)= 860 mΩ@ VGS =-2.5V -20V/-0.2A, RDS(ON)= 1450 mΩ@ VGS =-1.8V Application Battery Operated Systems Load/Power Switching S

AFC1016-Alfa-MOS.pdf

This datasheet PDF includes multiple part numbers: AFC1016, AFC1016-Alfa. Please refer to the document for exact specifications by model.

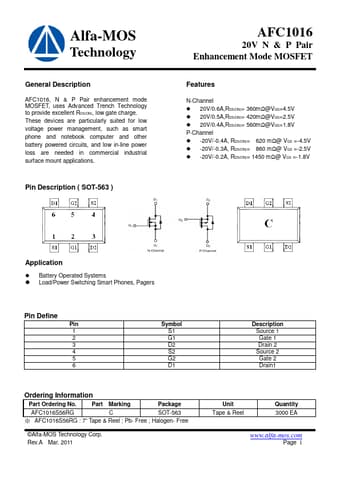

AFC1016 Datasheet Preview Page 2 AFC1016 Datasheet Preview Page 3

Datasheet Details

Part number:

AFC1016, AFC1016-Alfa

Manufacturer:

Alfa-MOS

File Size:

1.09 MB

Description:

N&p-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: AFC1016, AFC1016-Alfa.
Please refer to the document for exact specifications by model.
