AFC3346W

N&P-Channel MOSFET

AFC3346W Features

* N-Channel 40V/15A,RDS(ON)= 28mΩ@VGS=10V 40V/12A,RDS(ON)= 38mΩ@VGS=4.5V P-Channel -40V/-12A,RDS(ON)= 45mΩ@VGS= -10V -40V/-10A,RDS(ON)= 62mΩ@VGS= -4.5V Application DC/DC Conversion Load Switch DC FAN Pin Define Pin 1 2 3 4 5 6 7 8 Symbol S1 G1 S2 G2 D2 D2 D1 D1 Description Source 1 Gate 1 Source

AFC3346W General Description

AFC3346W, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications. Pin Descript.

AFC3346W Datasheet (0.98 MB)

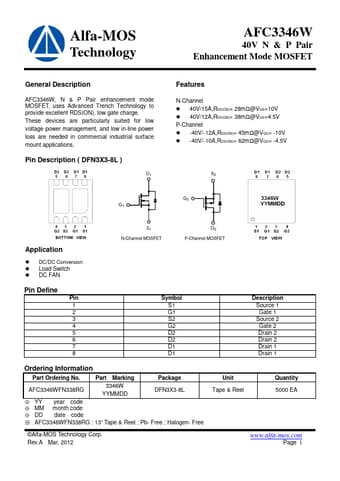

Preview of AFC3346W PDF

Datasheet Details

Part number:

AFC3346W

Manufacturer:

Alfa-MOS

File Size:

0.98 MB

Description:

N&p-channel mosfet.
