AFC3366W

N&P-Channel MOSFET

AFC3366W Features

* N-Channel 60V/12A,RDS(ON)=48mΩ@VGS=10V 60V/10A,RDS(ON)=54mΩ@VGS=4.5V P-Channel -60V/-8A,RDS(ON)= 105mΩ@VGS= -10V -60V/-6A,RDS(ON)= 115mΩ@VGS= -4.5V Application DC/DC Conversion Load Switch DC FAN Pin Define Pin 1 2 3 4 5 6 7 8 Symbol S1 G1 S2 G2 D2 D2 D1 D1 Description Source 1 Gate 1 Source 2

AFC3366W General Description

AFC3366W, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications. Pin Descript.

AFC3366W Datasheet (934.50 KB)

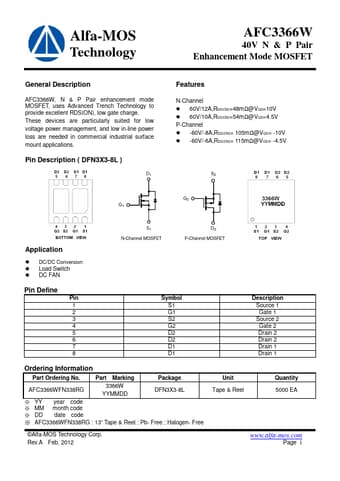

Preview of AFC3366W PDF

Datasheet Details

Part number:

AFC3366W

Manufacturer:

Alfa-MOS

File Size:

934.50 KB

Description:

N&p-channel mosfet.
