AFC7540, AFC7540-Alfa Datasheet - Alfa-MOS

AFC7540 N&P-Channel MOSFET

AFC7540, N & P Pair enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications. Pin Descripti.

AFC7540 Features

* N-Channel z 20V/ 12A,RDS(ON)=14mΩ@VGS=4.5V z 20V/ 10A,RDS(ON)=16mΩ@VGS=2.5V z 20V/ 8A,RDS(ON)=20mΩ@VGS=1.8V P-Channel z -20V/-9A,RDS(ON)=33mΩ@VGS=-4.5V z -20V/-8A,RDS(ON)=42mΩ@VGS=-2.5V z -20V/-6A,RDS(ON)=68mΩ@VGS=-1.8V Application z Point-of-Load Synchronous Rectifier - 5 V or 3.3 V BUS Step Down

AFC7540-Alfa-MOS.pdf

This datasheet PDF includes multiple part numbers: AFC7540, AFC7540-Alfa. Please refer to the document for exact specifications by model.

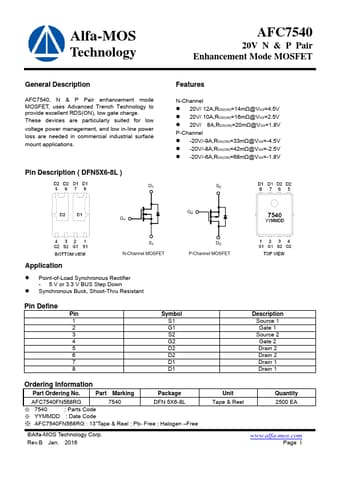

AFC7540 Datasheet Preview Page 2 AFC7540 Datasheet Preview Page 3

Datasheet Details

Part number:

AFC7540, AFC7540-Alfa

Manufacturer:

Alfa-MOS

File Size:

553.72 KB

Description:

N&p-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: AFC7540, AFC7540-Alfa.
Please refer to the document for exact specifications by model.
