AFN8412W Datasheet - Alfa-MOS

N-Channel Enhancement Mode MOSFET

AFN8412W Features

* 100V/3.6A,RDS(ON)=300mΩ@VGS=10V

* 100V/3.0A,RDS(ON)=310mΩ@VGS=4.5V

* Super high density cell design for extremely low RDS (ON)

* SOT-223 package design Application

* Motor and Load Control

* Power Management in White LED System

* Push Pull Converter

* LCD TV Invert

AFN8412W General Description

AFN8412W, N-Channel enhancement mode MOSFET, uses Advanced Trench Technology to provide excellent RDS(ON), low gate charge. These devices are particularly suited for low voltage power management, and low in-line power loss are needed in commercial industrial surface mount applications. Pin Descripti.

AFN8412W Datasheet (345.61 KB)

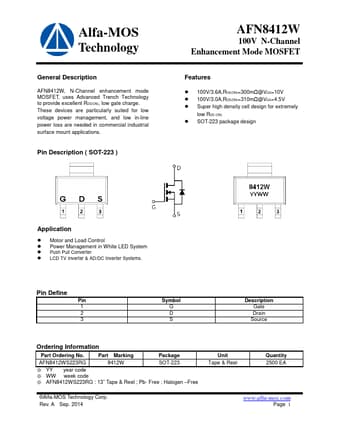

AFN8412W Datasheet Preview — Preview of AFN8412W PDF

Datasheet Details

Part number:

AFN8412W

Manufacturer:

Alfa-MOS

File Size:

345.61 KB

Description:

N-channel enhancement mode mosfet.
