512mbit (64m x 8-bit)nand flash.

AFND1208U1, 512Mbit (64M x 8-Bit)NAND FLASH

The AFND1208U1 is 512Mbit with spare 16Mbit capacity.

The device is offered in 3.3V power supply.

Its NAND cell provides the most cost-effective solution for the solid state mass storage market.

The memory is divided into blocks that can be erased independently so it possible to preserve valid data

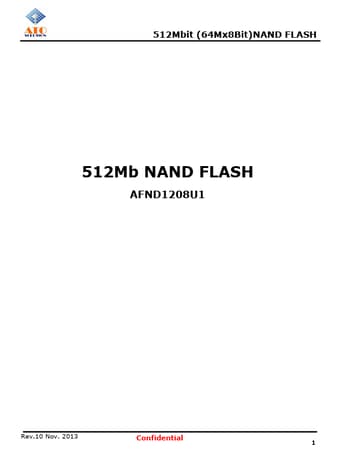

512Mbit (64Mx8Bit)NAND FLASH 512Mb NAND FLASH AFND1208U1 Rev.10 Nov.

2013 Confidential 1 512Mbit (64Mx8Bit)NAND FLASH Revision No.

History Rev.00 Initial Draft Rev.01 Rev.02 Rev.03 Rev.04 Rev.05 Add Product Information Typo Correction : Status Read Cycle in page25.

ALE  /WE, /WE  /RE Delete the phrases as follows 1.

“If sequential row read enabled, CE must be held low during tR” in Fig6 of page 22 2.

“ Sequential Row Read Operation (Within a Block) of page 27 -Typo Correction - Read1

AFND1208U1 Features

* SUMMARY

* Power Supply -3.3V Device(AFND1208U1) 2.7V ~ 3.6V

* Organization -Memory Cell Array : (64M + 2M) x 8bits -Data Register : (512 + 16) x 8bits

* Automatic Program and Erase -Page Program : (512 + 16) x 8bits -Block Erase : (16K +512)Bytes = 32pages

* Page Read
