CT8122

Integrated Bipolar TMR Digital Latches

CT8122 Features

* Sensitivity with BOP as low as 10 G

* Ultra-low power consumption: ~2.4 µA @ VDD = 3.3 V and fS = 500 Hz

* Supply voltage range: 1.7 V to 5.5 V

* Sensor polarity: bipolar

* Digital CMOS outputs:

* Push-pull

* Undervoltage lockout (UVLO)

CT8122 General Description

The CT812x series of bipolar tunnel magnetoresistance (TMR) digital latches are designed for consumer and industrial applications. The devices are based on Allegro patented XtremeSense™ TMR technology with integrated CMOS process to provide a monolithic solution for superior sensing performance. The.

CT8122 Datasheet (974.91 KB)

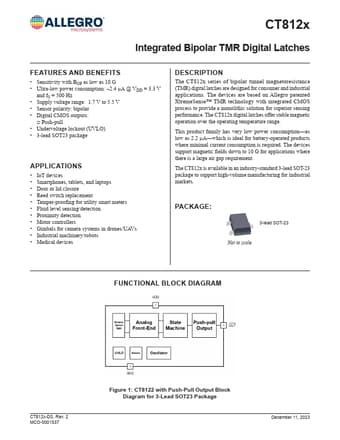

Preview of CT8122 PDF

Datasheet Details

Part number:

CT8122

Manufacturer:

Allegro

File Size:

974.91 KB

Description:

Integrated bipolar tmr digital latches.
