CT814A Datasheet, Optocoupler, CT Micro

CT814A Features

  • Optocoupler
  • High isolation 5000 VRMS
  • Patented coplanar structure DMC-Isolator®
  • Various CTR selection available
  • AC input with transistor output
  • Oper

PDF File Details

Part number:

CT814A

Manufacturer:

CT Micro

File Size:

1.75MB

Download:

📄 Datasheet

Description:

Phototransistor optocoupler. The CT814 series consists of a phototransistor optically coupled to two Infrared-emitting diodes, connected in inverse parallel, in a

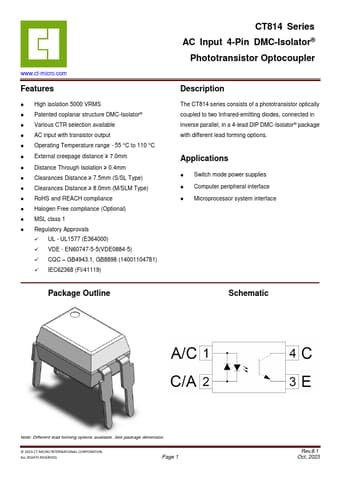

Datasheet Preview: CT814A 📥 Download PDF (1.75MB)
Page 2 of CT814A Page 3 of CT814A

CT814A Application

  • Applications
  • Switch mode power supplies
  • Computer peripheral interface
  • Microprocessor system interface Schematic Note:
