CT815 Datasheet, Optocoupler, CT Micro

CT815 Features

• Optocoupler
• High isolation 5000 VRMS
• Patented coplanar structure DMC-Isolator®
• DC input with Darlington output
• Operating Temperature range - 55 °C to 110 °C

PDF File Details

Part number:

CT815

Manufacturer:

CT Micro

File Size:

1.57MB

Download:

📄 Datasheet

Description:

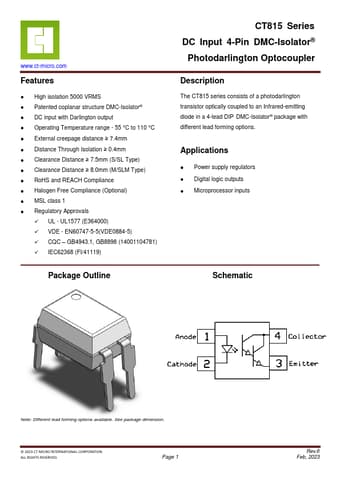

Photodarlington optocoupler. The CT815 series consists of a photodarlington transistor optically coupled to an Infrared-emitting diode in a 4-lead DIP DMC-Isolato

CT815 Application

• Applications
• Power supply regulators
• Digital logic outputs
• Microprocessor inputs Schematic Note: Different lead formi
