CT8132 Datasheet, Switches, Allegro

CT8132 Features

  • Switches
  • Sensitivity with BOP range: 9 to 70 G
  • Ultra-low power consumption: ~110 nA @ VDD = 1.8 V and fS = 2 Hz
  • Supply voltage range: 1.7 to 5.5 V
  • Sensor

PDF File Details

Part number:

CT8132

Manufacturer:

Allegro

File Size:

2.23MB

Download:

📄 Datasheet

Description:

Integrated omnipolar tmr digital switches. The CT813x series of omnipolar tunnel magnetoresistance (TMR) digital switches are designed for consumer and industrial applications.

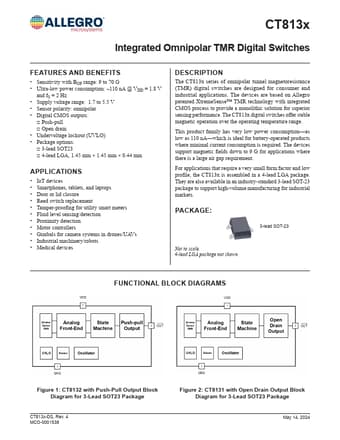

Datasheet Preview: CT8132 📥 Download PDF (2.23MB)
Page 2 of CT8132 Page 3 of CT8132

CT8132 Application

  • Applications
  • IoT devices
  • Smartphones, tablets, and laptops
  • Door or lid closure
  • Reed switch replacement
