AO3408 N-Channel Enhancement Mode Field Effect Transistor

Alpha & Omega Semiconductors

Description

Rev 3: July 2004 AO3408, AO3408L (Green Product) N-Channel Enhancement Mode Field Effect Transistor General .
The AO3408 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.

📥 Download Datasheet

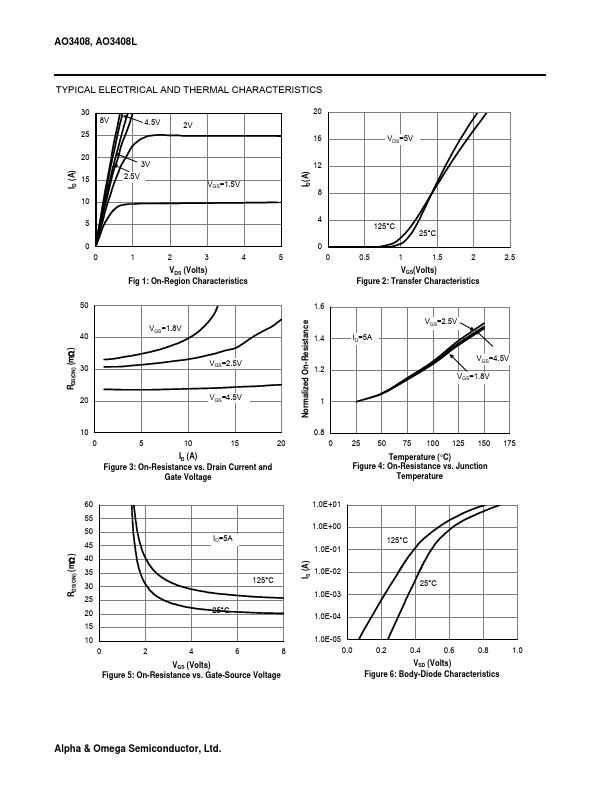

AO3408 Datasheet Preview — Preview of AO3408 PDF

Datasheet Specifications

Part number: AO3408
Manufacturer: Alpha & Omega Semiconductors
File Size: 155.89 KB
Datasheet: AO3408-AlphaOmegaSemiconductors.pdf
Description: N-Channel Enhancement Mode Field Effect Transistor

Features

* VDS (V) = 20V ID = 5.8 A RDS(ON) < 26mΩ (VGS = 4.5V) RDS(ON) < 33mΩ (VGS = 2.5V) RDS(ON) < 42mΩ (VGS = 1.8V) TO-236 (SOT-23) Top View G D S D G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain TA=25
