AO3409 30V P-Channel MOSFET

Alpha & Omega Semiconductors

Description

AO3409 30V P-Channel MOSFET General .
The AO3409 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.

📥 Download Datasheet

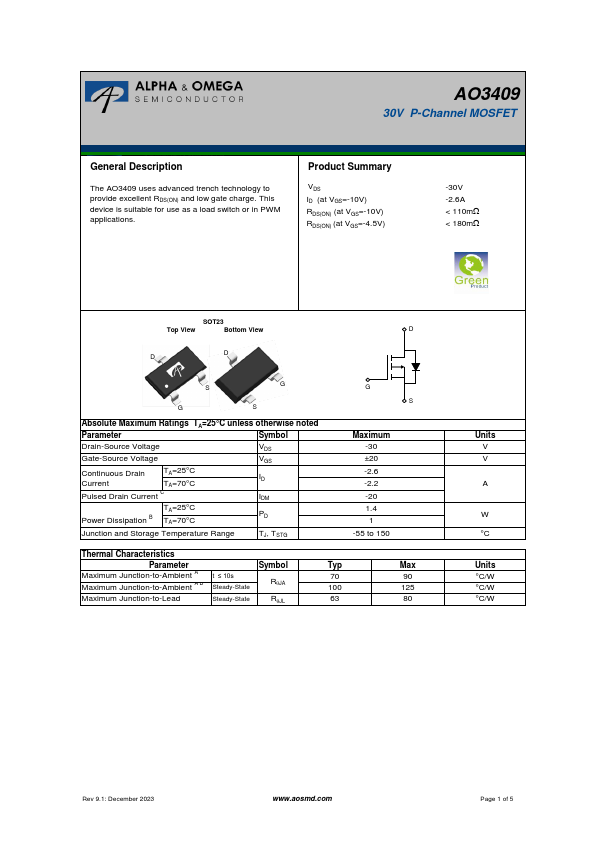

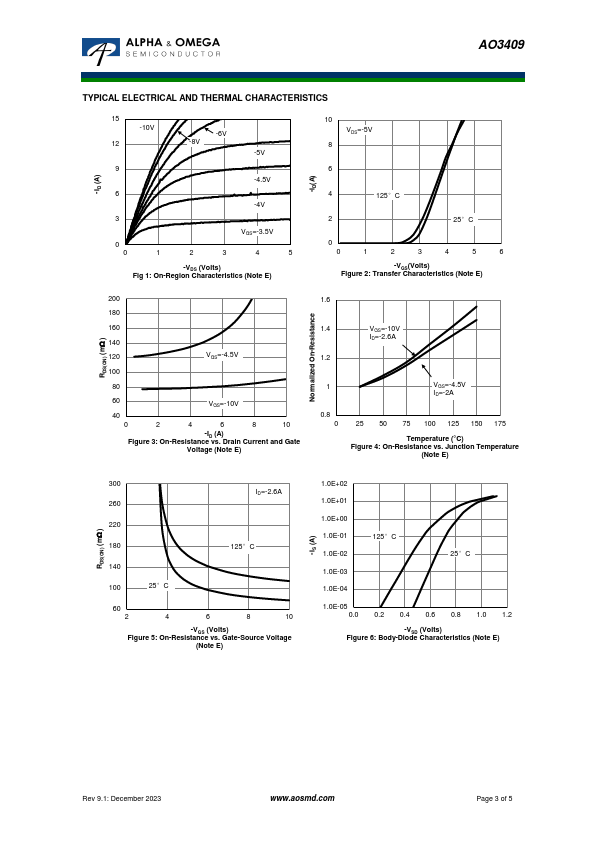

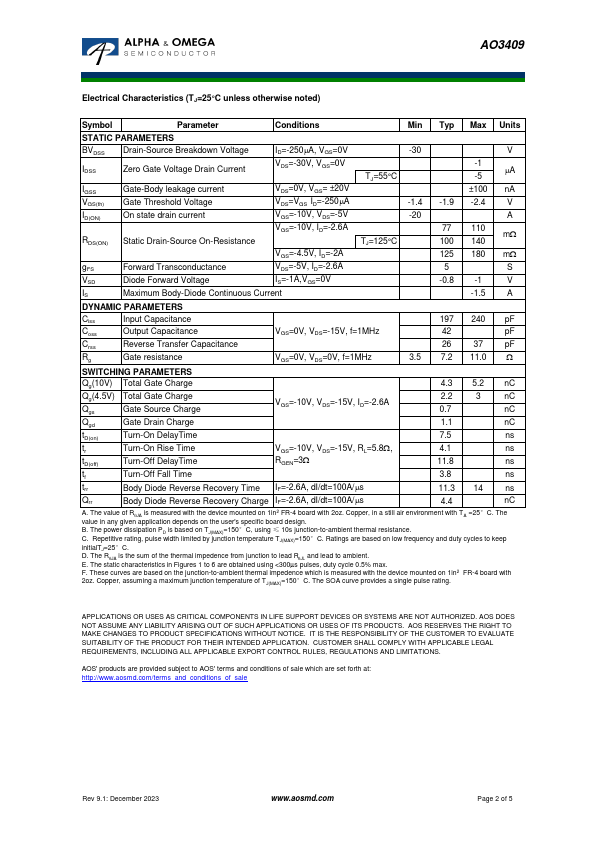

AO3409 Datasheet Preview — Preview of AO3409 PDF

Datasheet Specifications

Part number: AO3409
Manufacturer: Alpha & Omega Semiconductors
File Size: 321.39 KB
Datasheet: AO3409_AlphaOmegaSemiconductors.pdf
Description: 30V P-Channel MOSFET

Applications

* Product Summary VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS=-4.5V) -30V -2.6A < 110mW < 180mW SOT23 Top View Bottom View D D D S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuo
