AO3421E

30V P-Channel MOSFET

AO3421E General Description

Product Summary The AO3421E combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is ideal for load switch and battery protection applications. VDS ID (at VGS=-10V) RDS(ON) (at VGS=-10V) RDS(ON) (at VGS=-4.5V) Typical ESD protectio.

AO3421E Datasheet (360.18 KB)

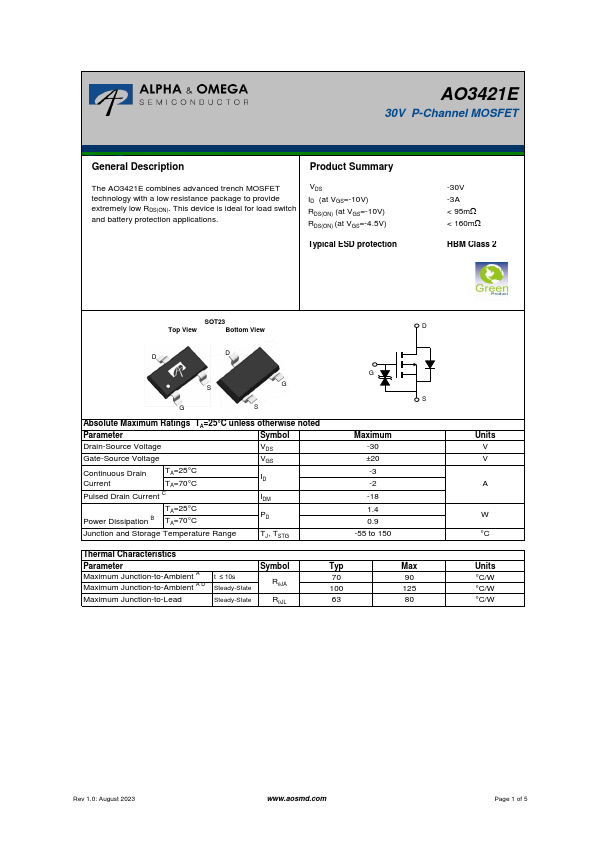

Preview of AO3421E PDF

Datasheet Details

Part number:

AO3421E

Manufacturer:

Alpha & Omega Semiconductors

File Size:

360.18 KB

Description:

30v p-channel mosfet.
