AO3424 - 30V N-Channel MOSFET

The AO3424 by Alpha & Omega Semiconductors is a 30V N-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

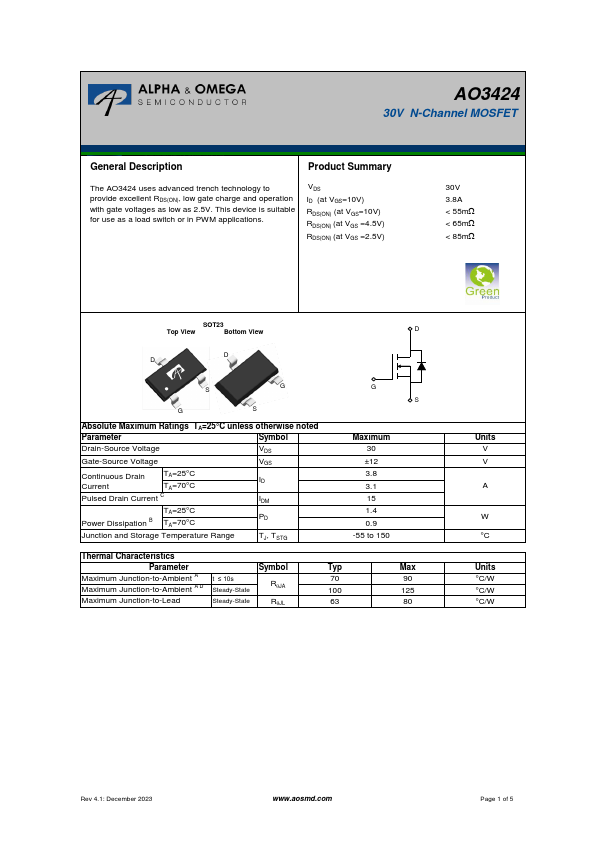

Official preview page of the AO3424 30V N-Channel MOSFET datasheet (Alpha & Omega Semiconductors).

Datasheet Details

Part number AO3424
Manufacturer Alpha & Omega Semiconductors
File Size 307.72 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet AO3424-AlphaOmegaSemiconductors.pdf

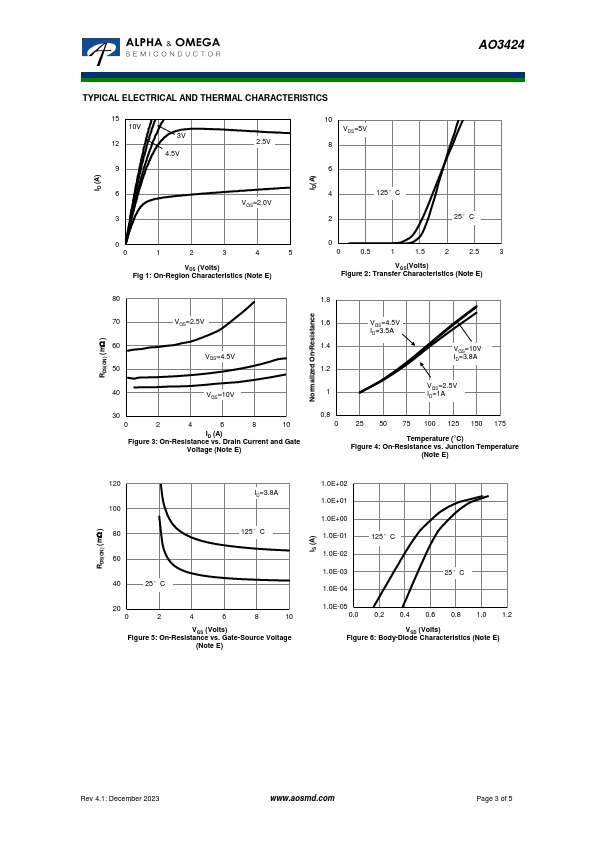

Additional preview pages of the AO3424 datasheet.

AO3424 Product details

Description

Product Summary The AO3424 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V.This device is suitable for use as a load switch or in PWM applications.VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS =4.5V) RDS(ON) (at VGS =2.5V) 30V 3.8A < 55mW < 65mW < 85mW SOT23 Top View Bottom View D D D S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS
