AO4914A Datasheet - Alpha & Omega Semiconductors

AO4914A_AlphaOmegaSemiconductors.pdf

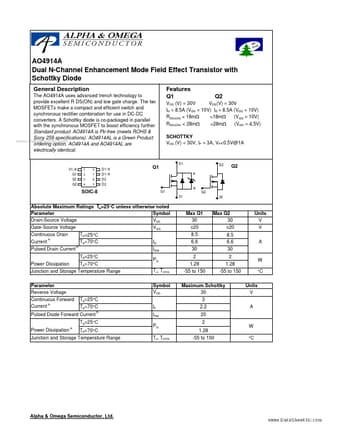

Preview of AO4914A PDF
AO4914A Datasheet Preview Page 2 AO4914A Datasheet Preview Page 3

Datasheet Details

Part number:

AO4914A

Manufacturer:

Alpha & Omega Semiconductors

File Size:

209.26 KB

Description:

Dual n-channel enhancement mode field effect transistor.

AO4914A, Dual N-Channel Enhancement Mode Field Effect Transistor

The AO4914A uses advanced trench technology to provide excellent R DS(ON) and low gate charge.

The two MOSFETs make a compact and efficient switch and synchronous rectifier combination for use in DC-DC converters.

A Schottky diode is co-packaged in parallel with the synchronous MOSFET to boost effic

AO4914A Features

* Q1 Q2 VDS (V) = 30V VDS(V) = 30V ID = 8.5A (VGS = 10V) ID = 8.5A (VGS = 10V) RDS(ON) < 18mΩ
