AOD4132, 30v N-Channel MOSFET

AOD4132 30v N-Channel MOSFET General .
The AOD4132 uses advanced trench technology to provide excellent RDS(ON), low gate charge and low gate resistance.

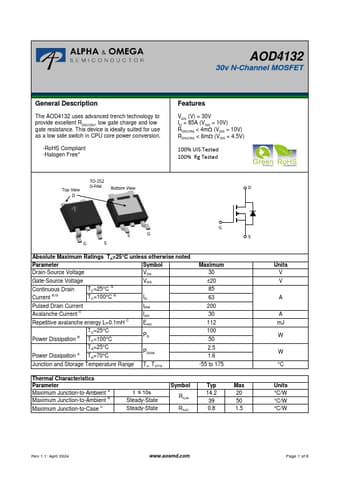

datasheet Preview Page 1 from Datasheet4u.com

AOD4132_AlphaOmegaSemiconductors.pdf

AOD4132 Datasheet Preview — Preview of AOD4132 PDF

Datasheet Details

Part number:

AOD4132

Manufacturer:

Alpha & Omega Semiconductors

File Size:

481.73 KB

Description:

30v N-Channel MOSFET

Features

* VDS (V) = 30V ID = 85A (VGS = 10V) RDS(ON) < 4mW (VGS = 10V) RDS(ON) < 6mW (VGS = 4.5V) 100% UIS Tested 100% Rg Tested TO-252 Top View D-PAK Bottom View D D G S S G G S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Volt

Applications

* OR USES AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING OUT OF SUCH APPLICATIONS OR USES OF ITS PRODUCTS. AOS RESERVES THE RIGHT TO MAKE CHANGES TO PRODUCT SPECIFICATIONS WITHOUT NOTICE. IT IS THE RESPONSIBILITY OF THE CUSTOMER
