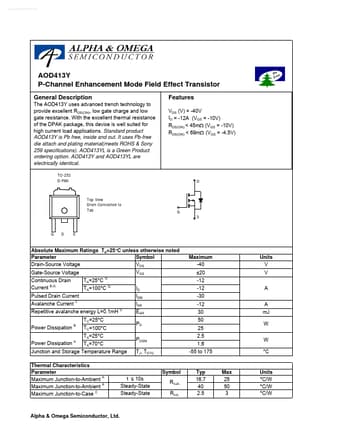

AOD413Y Datasheet - Alpha & Omega Semiconductors

AOD413Y P-Channel MOSFET

The AOD413Y uses advanced trench technology to provide excellent RDS(ON), low gate charge and low gate resistance. With the excellent thermal resistance of the DPAK package, this device is well suited for high current load applications. Standard product AOD413Y is Pb free, inside and out. It uses Pb.

AOD413Y Features

* VDS (V) = -40V ID = -12A (VGS = -10V) RDS(ON) < 45mΩ (VGS = -10V) RDS(ON) < 69mΩ (VGS = -4.5V) D Top View Drain Connected to Tab G S G D S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage VGS Gate-Source Voltage Continuous Drain Current B,G Pul

AOD413Y_AlphaOmegaSemiconductors.pdf
