AOD413 Datasheet - Alpha & Omega Semiconductors

P-Channel MOSFET

AOD413 Features

* VDS (V) = -40V ID = -12A (VGS = -10V) RDS(ON) < 45mΩ (VGS = -10V) RDS(ON) < 69mΩ (VGS = -4.5V) D Top View Drain Connected to Tab G S G D S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage VGS Gate-Source Voltage Continuous Drain Current B,G Pul

AOD413 General Description

The AOD413 uses advanced trench technology to provide excellent RDS(ON), low gate charge and low gate resistance. With the excellent thermal resistance of the DPAK package, this device is well suited for high current load applications. Standard Product AOD413 is Pb-free (meets ROHS & Sony 259 specif.

AOD413 Datasheet (144.99 KB)

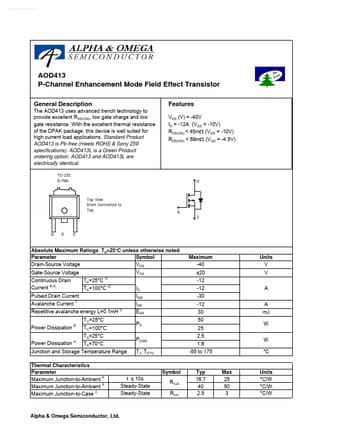

AOD413 Datasheet Preview — Preview of AOD413 PDF

Datasheet Details

Part number:

AOD413

Manufacturer:

Alpha & Omega Semiconductors

File Size:

144.99 KB

Description:

P-channel mosfet.
