AOD600A70 700V N-Channel Power Transistor

AOD600A70 Description

AOD600A70/AOI600A70 700V, aMOS5 TM N-Channel Power Transistor General .
Proprietary aMOS5TM technology. Low RDS(ON). Optimized switching parameters for better EMI performance. Enhanced.

AOD600A70 Applications

* Flyback for SMPS
* Charger ,PD Adapter, TV, lighting. Product Summary VDS @ Tj,max IDM RDS(ON),max Qg,typ Eoss @ 400V 100% UIS Tested 100% Rg Tested 800V 34A < 0.6Ω 15.5nC 1.8mJ TO-252 DPAK TO-251A IPAK D TopView Bottom View Top View Bottom View D DS DG G S AOD600A70

📥 Download Datasheet

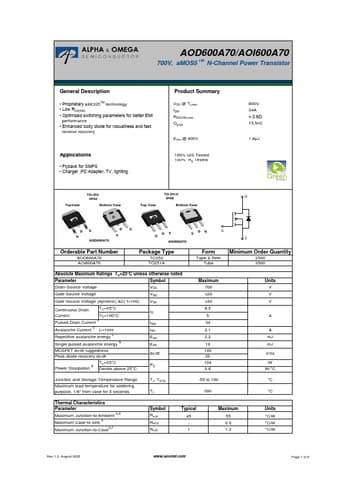

Preview of AOD600A70 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AOD600A70
Manufacturer
Alpha & Omega Semiconductors
File Size
660.25 KB
Datasheet
AOD600A70-AlphaOmegaSemiconductors.pdf
Description
700V N-Channel Power Transistor
