AOD604 Datasheet - Alpha & Omega Semiconductors

AOD604 MOSFET

The AOD604 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications. Standard product AOD604 is Pbfree (meets ROHS & Sony 259 specifications). AOD604L is a Green Product ordering opti.

AOD604 Features

* n-channel p-channel -40V VDS (V) = 40V ID = 8A (V GS=10V) -8A (V GS = -10V) RDS(ON) RDS(ON) < 33 m Ω (VGS=10V) < 50 m Ω (VGS = -10V) < 70 m Ω (VGS = -4.5V) < 47 m Ω (VGS=4.5V) D2 D1 Top View Drain Connected to Tab G2 S2 G1 S1 n-channel S1 G1 D1/D2 G2 S2 p-channel Absolute Maximum Ratings T A

AOD604_AlphaOmegaSemiconductors.pdf

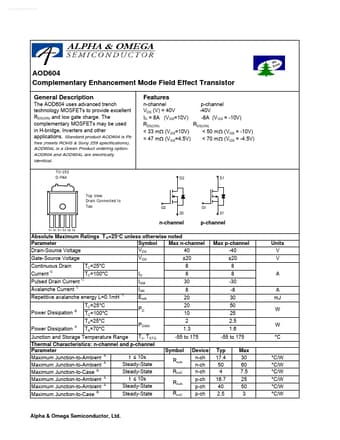

Preview of AOD604 PDF
AOD604 Datasheet Preview Page 2 AOD604 Datasheet Preview Page 3

Datasheet Details

Part number:

AOD604

Manufacturer:

Alpha & Omega Semiconductors

File Size:

194.36 KB

Description:

Mosfet.
