AOD606 Datasheet - Alpha & Omega Semiconductors

AOD606 MOSFET

AOD606 Features

* n-channel p-channel VDS (V) = 40V -40V ID = 8A (VGS=10V) -8A (VGS = -10V) RDS(ON) RDS(ON) < 33 mΩ (VGS=10V) < 50 mΩ (VGS = -10V) < 47 mΩ (VGS=4.5V) < 70 mΩ (VGS = -4.5V) 100% UIS Tested! Top View D TO-252-4L D-PAK Bottom View D1/D2 S2 G2 S1 G1D1/D2 G1 S1 n-channel G2 S2 p-channel

AOD606_AlphaOmegaSemiconductors.pdf

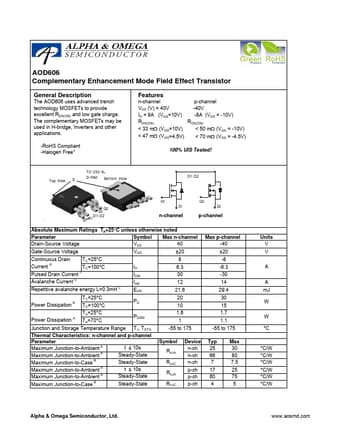

Preview of AOD606 PDF
AOD606 Datasheet Preview Page 2 AOD606 Datasheet Preview Page 3

Datasheet Details

Part number:

AOD606

Manufacturer:

Alpha & Omega Semiconductors

File Size:

239.19 KB

Description:

Mosfet.
