AOD603 Datasheet - Alpha & Omega Semiconductors

AOD603 MOSFET

The AOD603 uses advanced trench technology MOSFETs to provide excellent R DS(ON) and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications. Standard Product AOD603 is Pb-free (meets ROHS & Sony 259 specifications). AOD603L is a Green Product ordering op.

AOD603 Features

* n-channel p-channel -60V VDS (V) = 60V ID = 12A (V GS=10V) -12A (VGS=-10V) RDS(ON) RDS(ON) < 60m Ω (VGS=10V) < 115m Ω (VGS =- 10V) < 150m Ω (VGS = -4.5V) < 85m Ω (VGS=4.5V) D2 D1 Top View Drain Connected to Tab G2 S2 G1 S1 n-channel S1 G1 D1/D2 G2 S2 p-channel Absolute Maximum Ratings T A=25

AOD603_AlphaOmegaSemiconductors.pdf

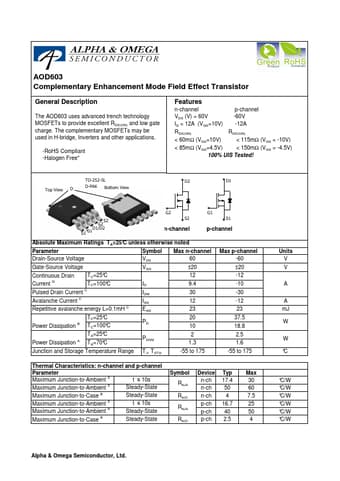

Preview of AOD603 PDF
AOD603 Datasheet Preview Page 2 AOD603 Datasheet Preview Page 3

Datasheet Details

Part number:

AOD603

Manufacturer:

Alpha & Omega Semiconductors

File Size:

225.80 KB

Description:

Mosfet.
