AON6404 N-Channel MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

AON6404 30V N-Channel MOSFET General .
The AON6404 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).

📥 Download Datasheet

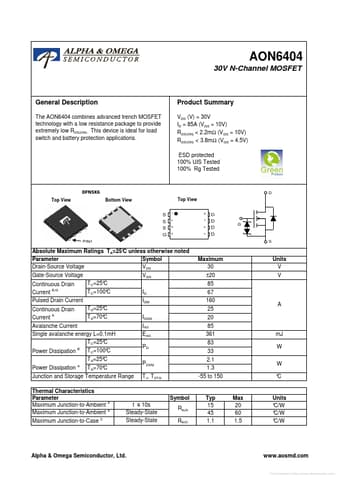

Preview of AON6404 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* Product Summary VDS (V) = 30V ID = 85A (VGS = 10V) RDS(ON) < 2.2mΩ (VGS = 10V) RDS(ON) < 3.8mΩ (VGS = 4.5V) ESD protected 100% UIS Tested 100% Rg Tested DFN5X6 Top View Bottom View 1 2 3 4 D Top View 8 7 6 5 G PIN1 S Absolute Maximum Ratings TA=25° C unless otherwise noted Parameter Symbol
