AON6404A - N-Channel MOSFET

📥 Download Datasheet

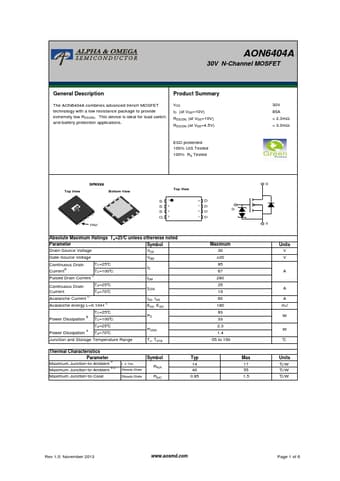

Preview of AON6404A PDF
datasheet Preview Page 2 datasheet Preview Page 3

AON6404A Product details

Description

Product Summary The AON6404A combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).This device is ideal for load switch and battery protection applications.VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) ESD protected 100% UIS Tested 100% Rg Tested 30V 85A < 2.3mΩ < 3.0mΩ Top View DFN5X6 Bottom View PIN1 Top View 18 27 36 45 G Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Vo
