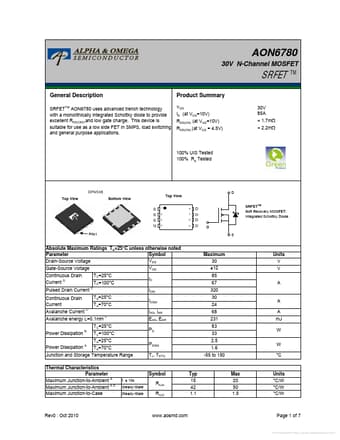

AON6780 Datasheet, Mosfet, Alpha & Omega Semiconductors

PDF File Details

Part number:

AON6780

Manufacturer:

Alpha & Omega Semiconductors

File Size:

278.36kb

Download:

📄 Datasheet

Description:

N-channel mosfet. SRFETTM AON6780 uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low

AON6780 Application

• Applications TM Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 30V 85A < 1.7mΩ < 2.2mΩ 100% UIS Tested 100% Rg
