AON6702L - 30V N-Channel MOSFET

AON6702L Description

AON6702L 30V N-Channel MOSFET SRFET TM General .
Product Summary SRFETTM AON6702L uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and lo.

AON6702L Applications

* VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 30V 85A < 2mΩ < 3mΩ 100% UIS Tested 100% Rg Tested Top View D DFN5X6 18 27 36 45 G SRFETTM Soft Recovery MOSFET: Integrated Schottky Diode S Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-S

📥 Download Datasheet

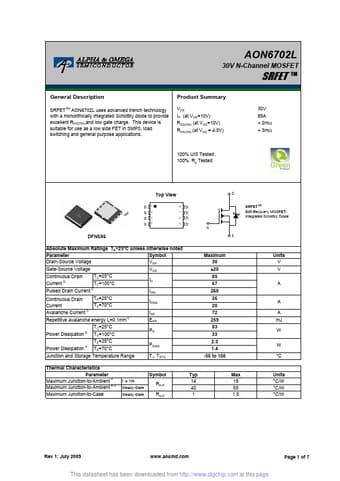

Preview of AON6702L PDF
datasheet Preview Page 2 datasheet Preview Page 3
