AON6710

Field Effect Transistor

AON6710 Features

* VDS (V) = 30V ID = 20A (VGS = 10V) RDS(ON) < 4.7mΩ (VGS = 10V) RDS(ON) < 6.7mΩ (VGS = 4.5V) Top View Fits SOIC8 footprint ! S S S G D D D D G D SRFET TM Soft Recovery MOSFET: Integrated Schottky Diode S DFN5X6 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Sou

AON6710 General Description

SRFETTM The AON6710/L uses advanced trench technology with a monolithically integrated Schottky www.DataSheet4U.com diode to provide excellent RDS(ON) and low gate charge.This device is suitable for use as a low side FET in SMPS, load switchng and general purpose applications. AON6710 and AON6710L a.

AON6710 Datasheet (218.67 KB)

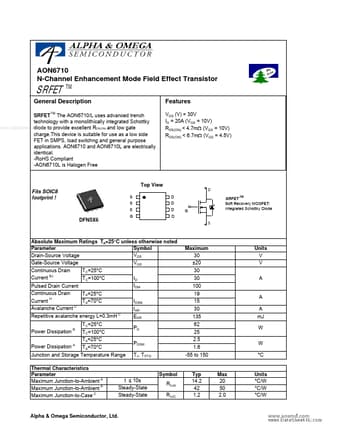

Preview of AON6710 PDF

Datasheet Details

Part number:

AON6710

Manufacturer:

Alpha & Omega Semiconductors

File Size:

218.67 KB

Description:

Field effect transistor.
