AON6712 Datasheet, Mosfet, Alpha & Omega Semiconductors

AON6712 Features

  • Mosfet VDS (V) = 30V ID = 20A (VGS = 10V) RDS(ON) < 5.5mΩ (VGS = 10V) RDS(ON) < 6.5mΩ (VGS = 4.5V) Top View Fits SOIC8 footprint ! S S S G D D D D G D SRFET TM Soft Recovery MOSFET: Integrat

PDF File Details

Part number:

AON6712

Manufacturer:

Alpha & Omega Semiconductors

File Size:

170.54kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The AON6712 uses advanced trench technology to provide excellent RDS(ON), low gate charge.This device is suitable for use as a high s

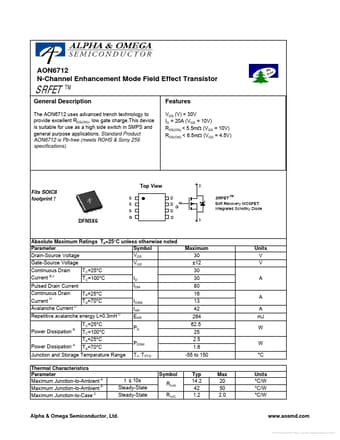

Datasheet Preview: AON6712 📥 Download PDF (170.54kb)
Page 2 of AON6712 Page 3 of AON6712

AON6712 Application

  • Applications Standard Product AON6712 is Pb-free (meets ROHS & Sony 259 specifications). Features VDS (V) = 30V ID = 20A (VGS = 10V) RDS(ON) < 5.5
