AON6702 Datasheet, Mosfet, Alpha & Omega Semiconductors

PDF File Details

Part number:

AON6702

Manufacturer:

Alpha & Omega Semiconductors

File Size:

269.15kb

Download:

📄 Datasheet

Description:

30v n-channel mosfet. SRFETTM AON6702 uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low

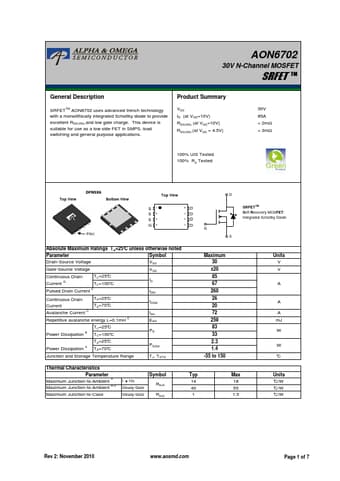

Datasheet Preview: AON6702 📥 Download PDF (269.15kb)
Page 2 of AON6702 Page 3 of AON6702

AON6702 Application

  • Applications Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 30V 85A < 2mΩ < 3mΩ 100% UIS Tested 100% Rg Tested
