AON6924 Datasheet, Mosfet, Alpha & Omega Semiconductors

PDF File Details

Part number:

AON6924

Manufacturer:

Alpha & Omega Semiconductors

File Size:

459.37kb

Download:

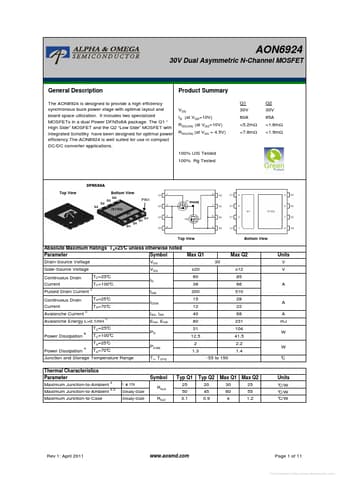

📄 Datasheet

Description:

N-channel mosfet. The AON6924 is designed to provide a high efficiency synchronous buck power stage with optimal layout and board space utilization. It

AON6924 Application

• Applications Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) Q1 30V 60A <5.2mΩ <7.8mΩ Q2 30V 85A <1.6mΩ <1.9mΩ 1

TAGS

AON6924

Alpha & Omega Semiconductors
