AOTL66915

100V N-Channel MOSFET

AOTL66915 General Description



* Trench Power MOSFET technology

* Higher in-rush current enabled for faster start-up and shorter down time

* RoHS 2.0 and Halogen-Free Compliant

* Tj=175C Rated Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=6V) 100V 339A < 1.7mΩ < 2.3mΩ .

AOTL66915 Datasheet (494.10 KB)

Preview of AOTL66915 PDF

Datasheet Details

Part number:

AOTL66915

Manufacturer:

Alpha & Omega Semiconductors

File Size:

494.10 KB

Description:

100v n-channel mosfet.

📁 Related Datasheet

AOTL66912 N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66912Q 100V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66914 100V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66918 100V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66401 40V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66515 150V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66518 150V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66810Q 80V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL66811 80V N-Channel MOSFET (Alpha & Omega Semiconductors)

AOTL095A60 N-Channel Power Transistor (Alpha & Omega Semiconductors)

TAGS

AOTL66915 100V N-Channel MOSFET Alpha & Omega Semiconductors

Image Gallery

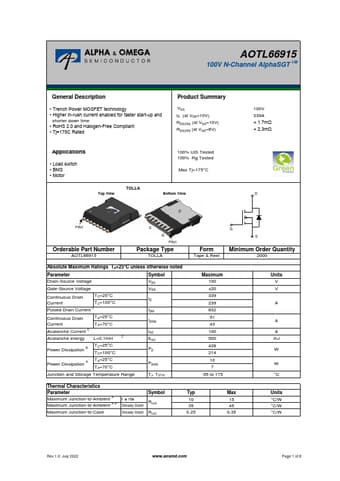

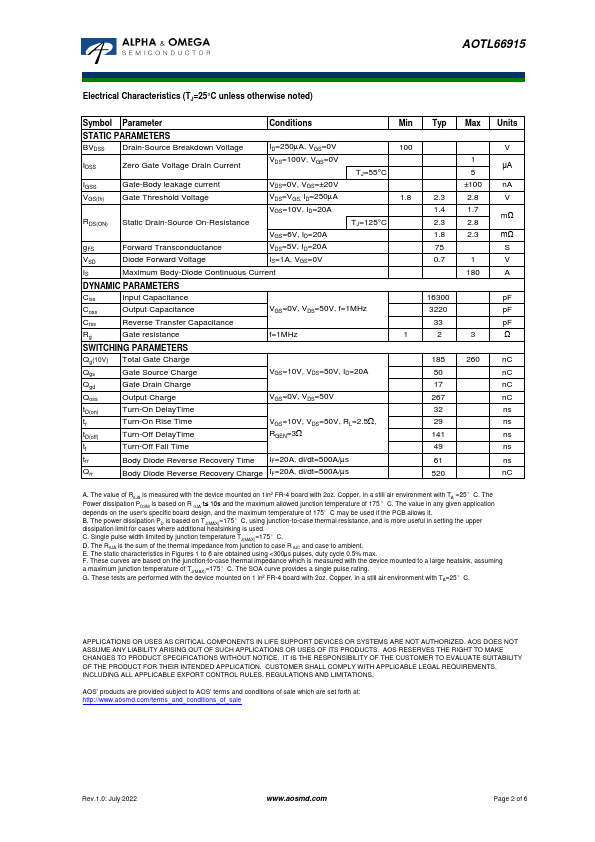

AOTL66915 Datasheet Preview Page 2 AOTL66915 Datasheet Preview Page 3
