BLD6G22L-50 - W-CDMA 2110 MHz to 2170 MHz fully integrated Doherty transistor

Ampleon

Datasheet Details

Part number	BLD6G22L-50
Manufacturer	Ampleon
File Size	0.98 MB
Description	W-CDMA 2110 MHz to 2170 MHz fully integrated Doherty transistor
Datasheet	BLD6G22L-50-Ampleon.pdf

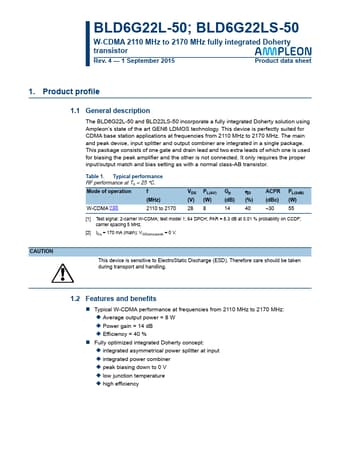

The BLD6G22L-50 and BLD22LS-50 incorporate a fully integrated Doherty solution using Ampleon’s state of the art GEN6 LDMOS technology.

Typical W-CDMA performance at frequencies from 2110 MHz to 2170 MHz:.
Average output power = 8 W.
Power gain = 14 dB.
Efficiency = 40 %.
Fully optimized integrated Doherty concept:.
integrated asymmetrical power splitter at input.
integrated power combiner.
peak biasing down to 0 V.
low junction temperature.
high efficiency BLD6G22L-50; BLD6G22LS-50 W-CDMA 2110 MHz to 2170 MHz fully integrated Doherty transistor.
100 % peak power tested f.
