AP1520, PWM Control 2A Step-Down Converter

www.DataSheet4U.com AP1520 PWM Control 2A Step-Down Converter * .
AP1520 consists of step-down switching regulator with PWM control.

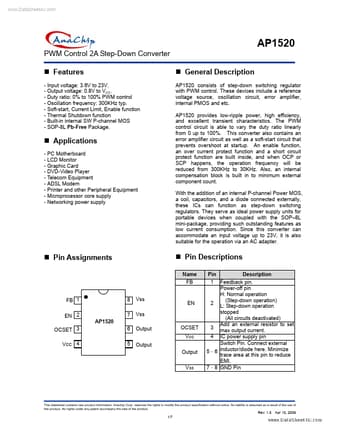

datasheet Preview Page 1 from Datasheet4u.com

AP1520_AnachipCorporation.pdf

AP1520 Datasheet Preview — Preview of AP1520 PDF

Datasheet Details

Part number:

AP1520

Manufacturer:

Anachip Corporation

File Size:

216.27 KB

Description:

PWM Control 2A Step-Down Converter

Features

* - Input voltage: 3.6V to 23V. - Output voltage: 0.8V to VCC. - Duty ratio: 0% to 100% PWM control - Oscillation frequency: 300KHz typ. - Soft-start, Current Limit, Enable function - Thermal Shutdown function - Built-in internal SW P-channel MOS - SOP-8L Pb-Free Package.
* General Descriptio

Applications

* - PC Motherboard - LCD Monitor - Graphic Card - DVD-Video Player - Telecom Equipment - ADSL Modem - Printer and other Peripheral Equipment - Microprocessor core supply - Networking power supply
* Pin Assignments
