AD557 - DACPORT/ Low-Cost Complete mP-Compatible 8-Bit DAC

Product Overview

Analog Devices

Datasheet Details

Part number	AD557
Manufacturer	Analog Devices
File Size	238.51 KB
Description	DACPORT/ Low-Cost Complete mP-Compatible 8-Bit DAC
Datasheet	AD557 Datasheet

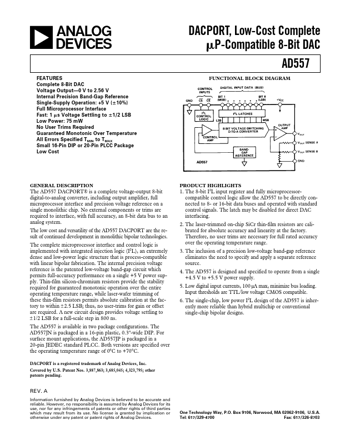

Additional preview pages of the AD557 datasheet.

Product details

Description

PRODUCT HIGHLIGHTS The AD557 DACPORT® is a complete voltage-output 8-bit digital-to-analog converter, including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip.No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system.The low cost and versatility of the AD557 DACPORT are the result of continued development in monolithic bipolar technologies.The complete microprocessor inter

Features

Complete 8-Bit DAC Voltage Output.
0 V to 2.56 V Internal Precision Band-Gap Reference Single-Supply Operation: +5 V (؎ 10%) Full Microprocessor Interface Fast: 1 ␮ s Voltage Settling to ؎1/2 LSB Low Power: 75 mW No User Trims Required Guaranteed Monotonic Over Temperature All Errors Specified TMIN to TMAX Small 16-Pin DIP or 20-Pin PLCC Package Low Cost.
