AD5662 Datasheet, D/a, Analog Devices

AD5662 Features

  • D/a Low power (250 μA @ 5 V) single 16-bit nanoDAC 12-bit accuracy guaranteed Tiny 8-lead SOT-23/MSOP package Power-down to 480 nA @ 5 V, 100 nA @ 3 V Power-on reset to zero scale/midscale

PDF File Details

Part number:

AD5662

Manufacturer:

Analog Devices ↗

File Size:

577.64kb

Download:

📄 Datasheet

Description:

2.7 v to 5.5 v 250 ua rail-to-rail output 16-bit dac d/a. The AD5662, a member of the nanoDAC family, is a low power, single, 16-bit buffered voltage-out DAC that operates from a single 2.7 V

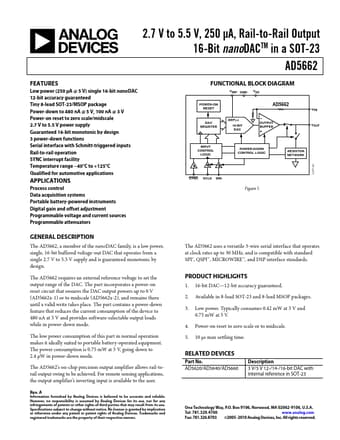

Datasheet Preview: AD5662 📥 Download PDF (577.64kb)
Page 2 of AD5662 Page 3 of AD5662

AD5662 Application

  • Applications APPLICATIONS Process control Data acquisition systems Portable battery-powered instruments Digital gain and offset adjustment Programma
