AD5663R, AD5623R - Dual 12-/14-/16-Bit nanoDAC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AD5663R, AD5623R. Please refer to the document for exact specifications by model.

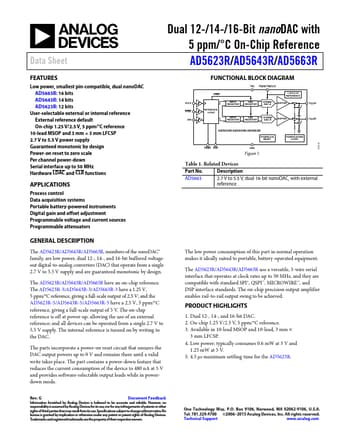

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number AD5663R, AD5623R
Manufacturer Analog Devices ↗
File Size 1.06 MB
Description Dual 12-/14-/16-Bit nanoDAC
Datasheet download datasheet AD5623R_AnalogDevices.pdf
Note This datasheet PDF includes multiple part numbers: AD5663R, AD5623R.
Please refer to the document for exact specifications by model.

AD5663R Product details

Description

2.7 V to 5.5 V, dual 16-bit nanoDAC, with external reference GENERAL DESCRIPTION The AD5623R/AD5643R/AD5663R, members of the nanoDAC family, are low power, dual 12-, 14-, and 16-bit buffered voltageout digital-to-analog converters (DAC) that operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.The AD5623R/AD5643R/AD5663R have an on-chip reference.The AD5623R-3/AD5643R-3/AD5663R-3 have a 1.25 V, 5 ppm/°C reference, giving a full-scale output of 2.5 V; and the AD56

Features
