AD5664R, AD5624R, 16-bit nanoDAC

Data Sheet Quad, 12-/14-/16-Bit nanoDACs with 5 ppm/°C On-Chip Reference AD5624R/AD5644R/AD5664R .
AD5624/AD5664 2.

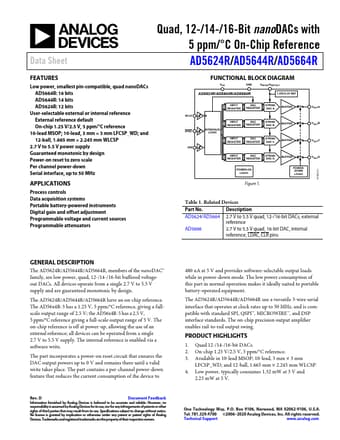

datasheet Preview Page 1 from Datasheet4u.com

AD5624R_AnalogDevices.pdf

AD5664R Datasheet Preview — This datasheet PDF includes multiple part numbers: AD5664R, AD5624R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AD5664R, AD5624R

Manufacturer:

Analog Devices ↗

File Size:

772.08 KB

Description:

16-bit nanoDAC

Note:

This datasheet PDF includes multiple part numbers: AD5664R, AD5624R.
Please refer to the document for exact specifications by model.

Features

* Low power, smallest pin-compatible, quad nanoDACs AD5664R: 16 bits AD5644R: 14 bits AD5624R: 12 bits User-selectable external or internal reference External reference default On-chip 1.25 V/2.5 V, 5 ppm/°C reference 10-lead MSOP; 10-lead, 3 mm × 3 mm LFCSP_WD; and 12-ball, 1.665 mm × 2.245 mm WLCSP

Applications

* Process controls Data acquisition systems Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuators FUNCTIONAL BLOCK DIAGRAM VDD GND VREFIN/VREFOUT AD5624R/AD5644R/AD5664R 1.25V/2.5V REF SCLK SYNC DIN INPUT REGIS
