2.7 V to 5.5 V quad, 12-, 14-, 16-bit DACs with internal reference GENERAL DESCRIPTION The AD5624/AD5664, members of the nanoDAC family, are low power, quad, 12-, 16-bit buffered voltage-out DACs that operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.

The AD5624/AD5

AD5664 Features

* Low power, quad nanoDACs AD5664: 16 bits AD5624: 12 bits Relative accuracy: ±12 LSBs max Guaranteed monotonic by design 10-lead MSOP and 3 mm × 3 mm LFCSP_WD 2.7 V to 5.5 V power supply Power-on reset to zero Per channel power-down Serial interface, up to 50 MHz FUNCTIONAL BLOCK DIAGRAM VDD GND VRE

AD5624_AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: AD5664, AD5624. Please refer to the document for exact specifications by model.

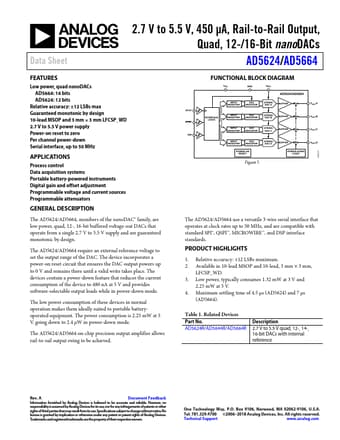

AD5664 Datasheet Preview Page 2 AD5664 Datasheet Preview Page 3
