AD5757 Datasheet - Analog Devices

AD5757 - Quad Channel 16-Bit Serial Input - 4-20mA Output DAC

The AD5757/AD5737 is a quad, current output DAC, which operates with a power supply of up to +33v.

On chip dynamic power control minimizes package power dissipation in current mode.

This is achieved by regulating the voltage on the output driver from between 7V-30V.

Each channel has a corresponding

AD5757 Features

* 16/12-Bit Resolution and Monotonicity Dynamic Power Control for Thermal Management IOUT Range: 0mA-20mA, 4mA

* 20mA or 0mA

* 24mA ±0.05% Total Unadjusted Error (TUE) Max User programmable Offset and Gain On Chip Diagnostics On-Chip Reference (±5 ppm/°C Max)

* 40°C to +105°C Temper

AD5757_AnalogDevices.pdf

Preview of AD5757 PDF

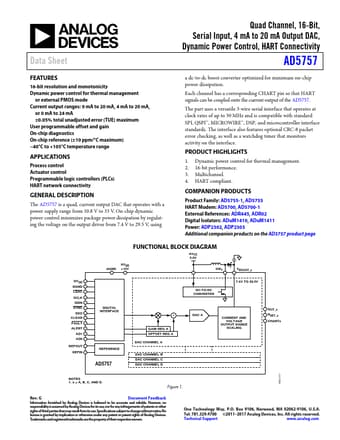

AD5757 Datasheet Preview Page 2 AD5757 Datasheet Preview Page 3

Datasheet Details

Part number:

AD5757

Manufacturer:

Analog Devices ↗

File Size:

1.06 MB

Description:

Quad channel 16-bit serial input - 4-20ma output dac.
