AD650

Voltage-to-Frequency and Frequency-to-Voltage Converter

AD650 Features

* V/F Conversion to 1 MHz Reliable Monolithic Construction Very Low Nonlinearity 0.002% typ at 10 kHz 0.005% typ at 100 kHz 0.07% typ at 1 MHz Input Offset Trimmable to Zero CMOS or TTL Compatible Unipolar, Bipolar, or Differential V/F V/F or F/V Conversion Available in Surface Mount MIL-STD-883 Compl

AD650 General Description

The AD650 V/F/V (voltage-to-frequency or frequency-to-voltage converter) provides a combination of high frequency operation and low nonlinearity previously unavailable in monolithic form. The inherent monotonicity of the V/F transfer function makes the AD650 useful as a high-resolution analog-to-di.

AD650 Datasheet (284.41 KB)

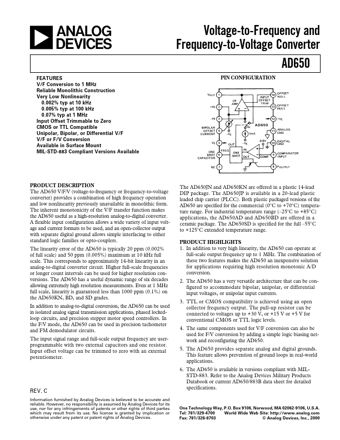

Preview of AD650 PDF

Datasheet Details

Part number:

AD650

Manufacturer:

Analog Devices ↗

File Size:

284.41 KB

Description:

Voltage-to-frequency and frequency-to-voltage converter.
