AD652

Monolithic Synchronous Voltage-to-Frequency Converter

AD652 Features

* Full-scale frequency (up to 2 MHz) set by external system clock Extremely low linearity error (0.005% max at 1 MHz FS, 0.02% max at 2 MHz FS) No critical external components required Accurate 5 V reference voltage Low drift (25 ppm/°C max) Dual- or single-supply operation Voltage or current input MI

AD652 General Description

The AD652 synchronous voltage-to-frequency converter (SVFC) is a powerful building block for precision analog-todigital conversion, offering typical nonlinearity of 0.002% (0.005% maximum) at a 100 kHz output frequency. The inherent monotonicity of the transfer function and wide range of clock frequ.

AD652 Datasheet (779.86 KB)

Preview of AD652 PDF

Datasheet Details

Part number:

AD652

Manufacturer:

Analog Devices ↗

File Size:

779.86 KB

Description:

Monolithic synchronous voltage-to-frequency converter.

📁 Related Datasheet

AD650 - Voltage-to-Frequency and Frequency-to-Voltage Converter (Analog Devices)
a FEATURES V/F Conversion to 1 MHz Reliable Monolithic Construction Very Low Nonlinearity 0.002% typ at 10 kHz 0.005% typ at 100 kHz 0.07% typ at 1 MH.

AD651 - Monolithic Synchronous Voltage to Frequency Converter (Analog Devices)
.. .. .. .. .. .. .. .

AD6528 - GSM/GPRS Digital Baseband Processor (Analog Devices)
.. GSM/GPRS Digital Baseband Processor For Smartphone and Wireless Handheld Devices Preliminary Technical Data FEATURES Complete Si.

AD654 - Low Cost Monolithic Voltage-to-Frequency Converter (Analog Devices)
a FEATURES Low Cost Single or Dual Supply, 5 V to 36 V, ؎5 V to ؎18 V Full-Scale Frequency Up to 500 kHz Minimum Number of External Components Needed .

AD6548 - Single Chip GSM Radio (MediaTek)
GSM850/900/1800/1900 Single Chip GSM Radio AD6548/9 FEATURES Fully Integrated GSM Transceiver including Direct Conversion Receiver 4 Differential LNA.

AD6549 - Single Chip GSM Radio (MediaTek)
GSM850/900/1800/1900 Single Chip GSM Radio AD6548/9 FEATURES Fully Integrated GSM Transceiver including Direct Conversion Receiver 4 Differential LNA.

AD600 - Variable Gain Amplifiers (Analog Devices)
FEATURES 2 channels with independent gain control Linear in dB gain response 2 gain ranges AD600: 0 dB to 40 dB AD602: –10 dB to +30 dB Accurate absol.

AD602 - Variable Gain Amplifiers (Analog Devices)
FEATURES 2 channels with independent gain control Linear in dB gain response 2 gain ranges AD600: 0 dB to 40 dB AD602: –10 dB to +30 dB Accurate absol.

TAGS

AD652 Monolithic Synchronous Voltage-to-Frequency Converter Analog Devices

Image Gallery

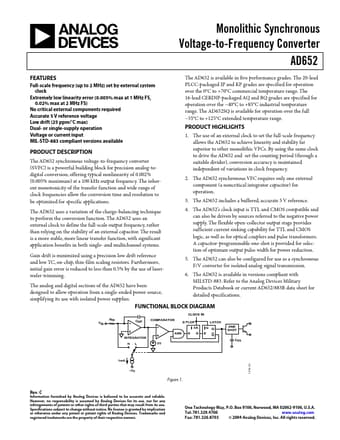

AD652 Datasheet Preview Page 2 AD652 Datasheet Preview Page 3
