AD654, Low Cost Monolithic Voltage-to-Frequency Converter

a .
The AD654 is a monolithic V/F converter consisting of an input amplifier, a precision oscillator system, and a high current output stage.

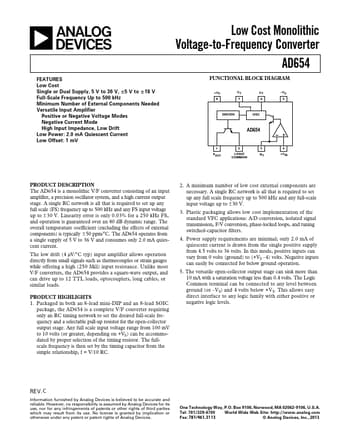

datasheet Preview Page 1 from Datasheet4u.com

AD654-AnalogDevices.pdf

AD654 Datasheet Preview — Preview of AD654 PDF

Datasheet Details

Part number:

AD654

Manufacturer:

Analog Devices ↗

File Size:

354.10 KB

Description:

Low Cost Monolithic Voltage-to-Frequency Converter

Features

* Low Cost Single or Dual Supply, 5 V to 36 V, ؎5 V to ؎18 V Full-Scale Frequency Up to 500 kHz Minimum Number of External Components Needed Versatile Input Amplifier Positive or Negative Voltage Modes Negative Current Mode High Input Impedance, Low Drift Low Power: 2.0 mA Quiescent Current Low Offset

Applications

* A/D conversion, isolated signal transmission, F/V conversion, phase-locked loops, and tuning switched-capacitor filters. 4. Power supply requirements are minimal; only 2.0 mA of quiescent current is drawn from the single positive supply from 4.5 volts to 36 volts. In this mode, positive inputs can
