AD6548, AD6549 Datasheet - MediaTek

AD6548 Single Chip GSM Radio

The AD6548/9 provides a highly integrated direct conversion radio solution that combines, on a single chip, all radio and power management functions necessary to build the most compact GSM radio solution possible. The only external components required for a complete radio design are the Rx SAWs, PA,.

AD6548 Features

* Fully Integrated GSM Transceiver including Direct Conversion Receiver 4 Differential LNAs Integrated Active RX Channel Select Filters Programmable Gain Baseband Amplifiers Translation Loop Direct VCO Modulator Integrated TX VCO and tank External TX filters eliminated Integrated Loop filter component

AD6549_MediaTek.pdf

This datasheet PDF includes multiple part numbers: AD6548, AD6549. Please refer to the document for exact specifications by model.

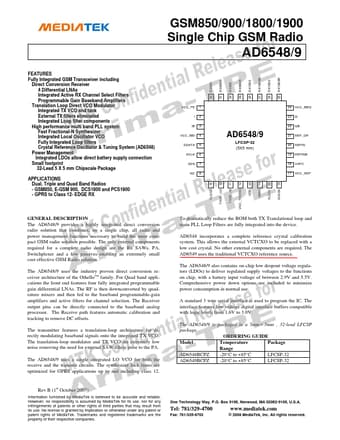

AD6548 Datasheet Preview Page 2 AD6548 Datasheet Preview Page 3

Datasheet Details

Part number:

AD6548, AD6549

Manufacturer:

MediaTek

File Size:

580.22 KB

Description:

Single chip gsm radio.

Note:

This datasheet PDF includes multiple part numbers: AD6548, AD6549.
Please refer to the document for exact specifications by model.
