AD8293G160, AD8293G80 Zero-Drift In-Amp

AD8293G160 Description

Low Cost, Zero-Drift In-Amp with Filter and Fixed Gain AD8293G80/AD8293G160 .
The AD8293G80/AD8293G160 are small, low cost, precision instrumentation amplifiers that have low noise and rail-to-rail outputs.

AD8293G160 Features

* Small package: 8-lead SOT-23 Reduced component count Incorporates gain resistors and filter resistors Low offset voltage: 20 μV maximum Low offset drift: 0.3 μV/°C maximum Low gain drift: 25 ppm/°C maximum High CMR: 140 dB typical Low noise: 0.7 μV p-p from 0.01 Hz to 10 Hz Single-supply operation:

AD8293G160 Applications

* Current sensing Strain gauges Laser diode control loops Portable medical instruments Thermocouple amplifiers 0.1µF 7 5 C2 6 +VS LOAD 8 FILT R2 OUT +IN R1 4kΩ IN-AMP I RSHUNT 1 R3 5kΩ ADC OUT 4 ADC C3 +3.3V REF
* IN GND REF 2 3 1.8V DC-DC www. DataSheet. co. kr Figure 2. Measuring

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AD8293G160, AD8293G80. Please refer to the document for exact specifications by model.

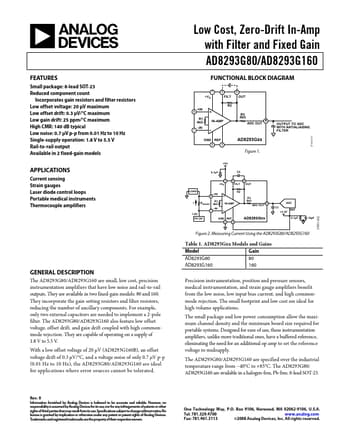

datasheet Preview Page 2 datasheet Preview Page 3
