AD8295, Precision Instrumentation Amplifier

Precision Instrumentation Amplifier with Signal Processing Amplifiers AD8295 .
The AD8295 contains all the components necessary for a precision instrumentation amplifier front end in one small 4 mm × 4 mm package.

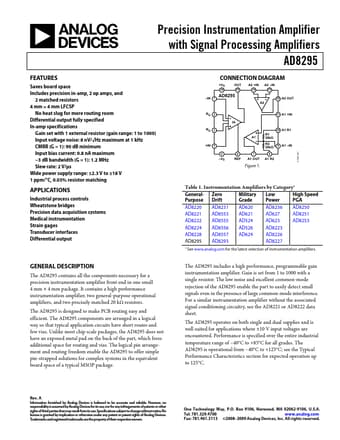

datasheet Preview Page 1 from Datasheet4u.com

AD8295_AnalogDevices.pdf

AD8295 Datasheet Preview — Preview of AD8295 PDF

Datasheet Details

Part number:

AD8295

Manufacturer:

Analog Devices ↗

File Size:

0.97 MB

Description:

Precision Instrumentation Amplifier

Features

* Saves board space Includes precision in-amp, 2 op amps, and 2 matched resistors 4 mm × 4 mm LFCSP No heat slug for more routing room Differential output fully specified In-amp specifications Gain set with 1 external resistor (gain range: 1 to 1000) Input voltage noise: 8 nV/√Hz maximum at 1 kHz CMRR

Applications

* Industrial process controls Wheatstone bridges Precision data acquisition systems Medical instrumentation Strain gages Transducer interfaces Differential output Table 1. Instrumentation Amplifiers by Category1 GeneralPurpose AD8220 AD8221 AD8222 AD8224 AD8228 AD8295 1 www. DataSheet. co. kr Zero Dri
