AD829AQ

Low Noise Video Op Amp

AD829AQ Features

* High speed 120 MHz bandwidth, gain =

* 1 230 V/µs slew rate 90 ns settling time to 0.1% Ideal for video applications 0.02% differential gain 0.04° differential phase Low noise 1.7 nV/√Hz input voltage noise 1.5 pA/√Hz input current noise Excellent dc precision 1 mV maximum input offset voltag

AD829AQ General Description

The"% is a low noise (1.7 nV/√Hz), high speed op amp with custom compensation that provides the user with gains of 1 to 20 while maintaining a bandwidth >50 MHz. Its 0.04° differential phase and 0.02% differential gain performance at 3.58 MHz and 4.43 MHz, driving reverse-terminated 50 Ω or 75 Ω.

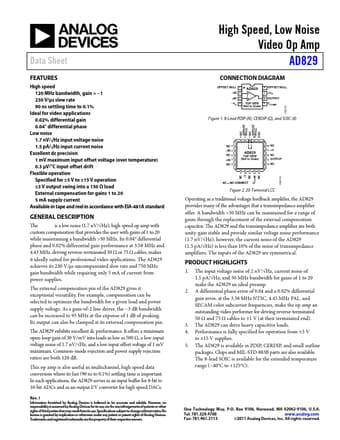

AD829AQ Datasheet (435.78 KB)

Preview of AD829AQ PDF

Datasheet Details

Part number:

AD829AQ

Manufacturer:

Analog Devices ↗

File Size:

435.78 KB

Description:

Low noise video op amp.
