AD829AR, AD829 Low Noise Video Op Amp

AD829AR Description

Data Sheet .
The"% is a low noise (1.

AD829AR Features

* High speed 120 MHz bandwidth, gain =

AD829AR Applications

* 0.02% differential gain 0.04° differential phase Low noise 1.7 nV/√Hz input voltage noise 1.5 pA/√Hz input current noise Excellent dc precision 1 mV maximum input offset voltage (over temperature) 0.3 µV/°C input offset drift Flexible operation Specified for ±5 V to ±15 V operation ±3 V output swing

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AD829AR, AD829. Please refer to the document for exact specifications by model.

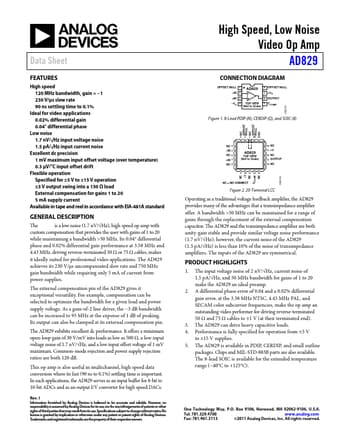

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AD829AR, AD829
Manufacturer
Analog Devices ↗
File Size
435.78 KB
Datasheet
AD829-AnalogDevices.pdf
Description
Low Noise Video Op Amp
Note
This datasheet PDF includes multiple part numbers: AD829AR, AD829.
Please refer to the document for exact specifications by model.
