AD8390A

High Output Current Differential Amplifier

AD8390A Features

* Voltage feedback amplifier Ideal for ADSL and ADSL2+ central office (CO) and customer premises equipment (CPE) applications Enables high current differential applications Low power operation Single- or dual-supply operation from 10 V (± 5 V) up to 24 V (± 12 V) 5.5 mA total quiescent supply current

AD8390A General Description

The AD8390A is a high output current, low power consumption differential amplifier. It is particularly well suited for the central office (CO) driver interface in digital subscriber line systems such as ADSL and ADSL2+. In full bias operation, the driver delivers 20.4 dBm output power into low resis.

AD8390A Datasheet (395.23 KB)

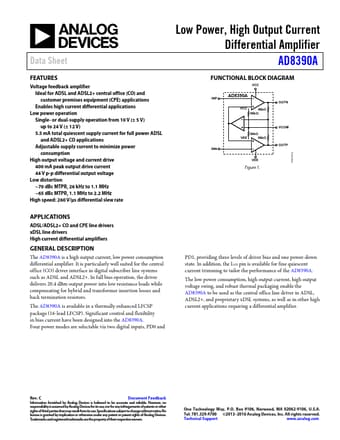

Preview of AD8390A PDF

Datasheet Details

Part number:

AD8390A

Manufacturer:

Analog Devices ↗

File Size:

395.23 KB

Description:

High output current differential amplifier.
